Winkhaus AV2 Heritage Multipoint Lock 1.77m

The From the Anvil Winkhaus AV2 Heritage Multipoint Lock is a premium door lock option that offers enhanced security and ease of use. It is designed to meet the needs of both replacement period doors and new build doors.

• The euro profile locking cylinder of AV2 Heritage is located at a similar height to a traditional round cylinder pull but provides instant higher security as the lock is operated automatically as soon as the door is closed.
• Simply operated with just a euro profile thumbturn cylinder which is located ay approx. 2/3 of the door height to replicate the rim locking night latch found on traditional doors.
• An external lever handle is not required to operate the locking points and the lock can be deadlocked or opened externally by turning the key a quarter of a turn.
• The door is automatically locked when closed from the inside and the key is required to gain entry from the outside.
• Automatic locking on closing the door with 2 solid anti pushback hooks which fully penetrate the steel keeps helping to prevent forcing a part of the door and frame.
• Please note 1 x euro profile thumbturn cylinder needs to be purchased separately.

• The euro profile locking cylinder of AV2 Heritage is located at a similar height to a traditional round cylinder pull but provides instant higher security as the lock is operated automatically as soon as the door is closed.
• Simply operated with just a euro profile thumbturn cylinder which is located ay approx. 2/3 of the door height to replicate the rim locking night latch found on traditional doors.
• An external lever handle is not required to operate the locking points and the lock can be deadlocked or opened externally by turning the key a quarter of a turn.
• The door is automatically locked when closed from the inside and the key is required to gain entry from the outside.
• Automatic locking on closing the door with 2 solid anti pushback hooks which fully penetrate the steel keeps helping to prevent forcing a part of the door and frame.
• Please note 1 x euro profile thumbturn cylinder needs to be purchased separately.

Overall Height: 1770mm
Centre Case Size: 63mm (D) x 186mm (H) x 15mm (T)
Hook Lock Box Size: 45mm (D) x 113mm (H) x 15mm (T)
Backset: 45mm

Overall Height: 1770mm
Centre Case Size: 63mm (D) x 186mm (H) x 15mm (T)
Hook Lock Box Size: 45mm (D) x 113mm (H) x 15mm (T)
Backset: 45mm

Winkhaus AV2 Heritage Multipoint Lock 1.77m - 92149 - Technical Drawing

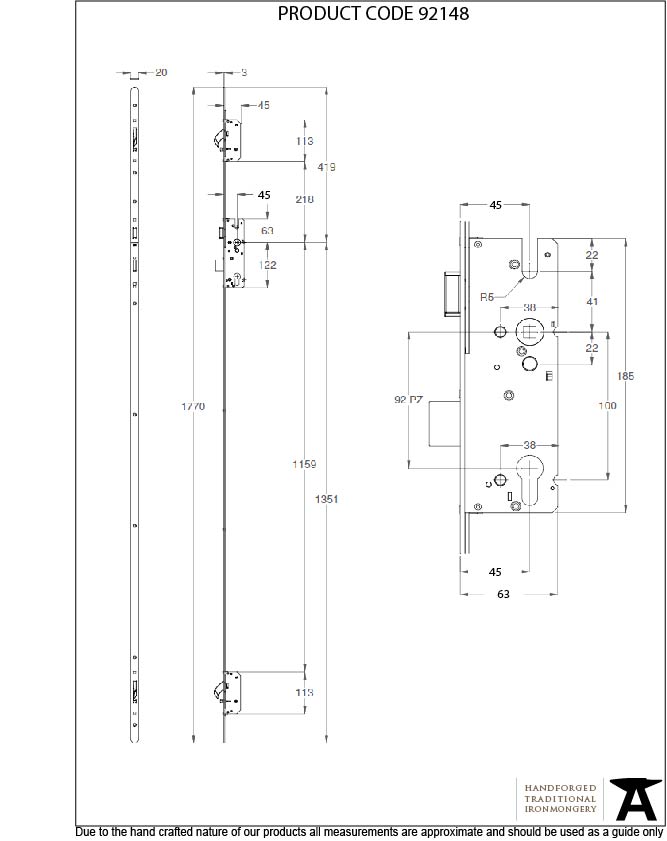

Winkhaus AV2 Heritage Multipoint Lock 1.77m - 92148 - Technical Drawing
